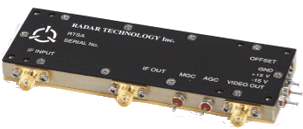

RTSA Series Linear Hybrid Amplifiers |
|
Description
For the system that needs it all, RTI has developed the RTSA series. This linear amplifier combines all the features found in the RTA-4, with closed loop AGC. To optimize closed loop operation, pulse width and PRF should be specified at time of order. Optional features available include IAGC, blanking and FTC. Please contact the factory for details on optional specifications.
Design Note: Radar Technology can customize any of our products to meet your individual system requirements. RTI also offers many Form, Fit, Function replacements to old RHG Electronics Amplifiers.
Features
- 10-1000MHz Frequency Range
- MGC and Closed Loop AGC
- Low Noise
| General Specifications | |
|---|---|
| Gain Control | 50dB (min) |
| Gain Control Voltage | 0 to -4V (nom) |
| Source Impedance | 50 Ohms |
| Video Load Impedance | 93 Ohms |
| Temperature Range | -30°C to +71°C |
| Power Requirements | ±15V DC |
| Connectors | SMA |
| Optional Specifications | |
|---|---|
| DC Coupled Video Output | (add suffix D) |
| Power Supplies | ±12V DC (add suffix C) |
| Matched Set:(Gain/Phase) | 2,3 units/set (add suffix M) |
| Model | Center Frequency (MHz) | Bandwidth (MHz) | Noise Figure (dB) | Dynamic Range (dB) |
|---|---|---|---|---|
| RTSA-1003 | 10 | 3 | 4 | 70 |
| RTSA-3002 | 30 | 2 | 4 | 70 |
| RTSA-3010 | 30 | 10 | 4 | 70 |
| RTSA-6010 | 60 | 10 | 4 | 70 |
| RTSA-6020 | 60 | 20 | 4 | 70 |
| RTSA-7010 | 70 | 10 | 4 | 70 |
| RTSA-7020 | 70 | 20 | 4 | 70 |
| RTSA-12020 | 120 | 20 | 5 | 60 |
| RTSA-12040 | 120 | 40 | 5 | 60 |
| RTSA-16020 | 160 | 20 | 5 | 60 |
| RTSA-16040 | 160 | 40 | 5 | 60 |
| RTSA-300 | 300 | 200 | 5 | 60 |
| RTSA-500 | 500 | 200 | 5 | 60 |
| RTSA-750 | 750 | 300 | 5 | 60 |
| RTSA-1000 | 1000 | 500 | 5 | 60 |
