RTL-7 Series Logarithmic Amplifiers

Bookmark and Share

Description

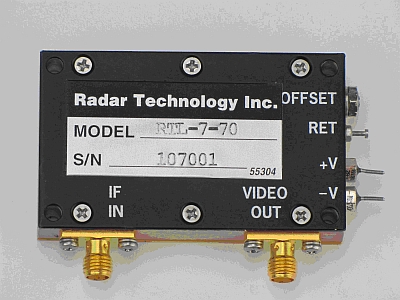

RTI has developed a series of low cost and easily customized log amplifiers, available in frequency range from DC to 3 GHz.

Design Note: Radar Technology can customize any of our products to meet your individual system requirements. RTI also offers many Form, Fit, Function replacements to old RHG Electronics Amplifiers.

General Specification
   Slope 25 mV/dB (typical)
Source Impedance 50 Ohms
Video Load Impedance 93 Ohms
Power Requirements ±15 VDC
Connectors SMA

Optional Specifications
Customized video load, slope
±12 VDC power supplies
Single power supply

Model Frequency (MHz) Rise Time (nS) Linearity at 25º C (dB) Input Power (dBm)
RTL-7-10 10 200 1 -70 to +10
RTL-7-30 30 100 1 -70 to +10
RTL-7-45 45 100 1 -70 to +10
RTL-7-60 60 100 1 -70 to +10
RTL-7-70 70 100 1 -70 to +10
RTL-7-120 120 100 1 -70 to +10
RTL-7-160 160 100 1 -70 to +10
RTL-7-200 200 100 1 -70 to +10
RTL-7-300 300 100 1 -70 to +10
RTL-7-100-2500 100-2500 40 1.5 -65 to 0
