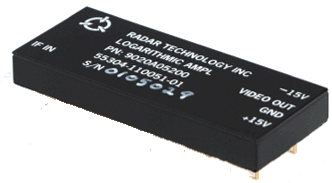

RTL-6 Series Hermetic Sealed Log Amplifiers |
|
Description
RTI has developed a series of hybrid log amplifiers that are small in size, light in weight, and high on reliability. These units are hermetically sealed devices with 50 Ohm PCB mountable pins. The amplifiers are available in a variety of chassis packages and are designed to meet MIL-STD-5400 and MIL-STD-16400 environments and can be cycled to MIL-STD 883, Method 1010, Condition A.
Design Note: Radar Technology can customize any of our products to meet your individual system requirements. RTI also offers many Form, Fit, Function replacements to old RHG Electronics Amplifiers.
Features
- Hermetically Sealed
- PCB Mountable
- 80dB Dynamic Range
- ± 1dB Linearity
| General Specifications | |
|---|---|
| Linearity | ±1 dB (add ±0.5 dB over Temperature)
(-30°C to +71°C) |
| Sensitivity | 25mV/dB (typ) |
| Source Impedance | 50 Ohms |
| Video Load Input | 93 Ohms |
| Power Requirements | ± 15V DC |
| Connectors | PCB Mountable Pins |
| Optional Specifications | |
|---|---|
| Limited IF Output | 0dBm (add suffix B) or 10dBm (add suffix B+) |
| Power Supplies | ± 12V DC (add suffix C) |
| Matched Set | 2,3 units/set (add suffix M) |
| Model | Center Frequency(MHz) | Bandwidth(MHz) | Rise Time(uS) | Dynamic Range(dB) | Input Power(dBm) |
|---|---|---|---|---|---|
| RTL-6-1003 | 10 | 3 | 0.5 | 80 | -80 to 0 |
| RTL-6-3002 | 30 | 2 | 0.5 | 80 | -80 to 0 |
| RTL-6-3004 | 30 | 4 | 0.25 | 80 | -80 to 0 |
| RTL-6-3010 | 30 | 10 | 0.1 | 80 | -80 to 0 |
| RTL-6-4510 | 45 | 10 | 0.1 | 80 | -80 to 0 |
| RTL-6-6010 | 60 | 10 | 0.1 | 80 | -80 to 0 |
| RTL-6-6020 | 60 | 20 | 0.05 | 80 | -80 to 0 |
| RTL-6-7010 | 70 | 10 | 0.1 | 80 | -80 to 0 |
| RTL-6-7020 | 70 | 20 | 0.05 | 80 | -80 to 0 |
| RTL-6-12020 | 120 | 20 | 0.05 | 70 | -70 to 0 |
| RTL-6-12040 | 120 | 40 | 0.03 | 70 | -70 to 0 |
| RTL-6-16020 | 160 | 20 | 0.05 | 70 | -70 to 0 |
| RTL-6-16030 | 160 | 30 | 0.04 | 70 | -70 to 0 |
| RTL-6-16040 | 160 | 40 | 0.03 | 70 | -70 to 0 |
